We can provide the complete range of Kelvion plate heat exchangers, including all gasketed plate heat exchangers, along with all spare parts and gaskets.

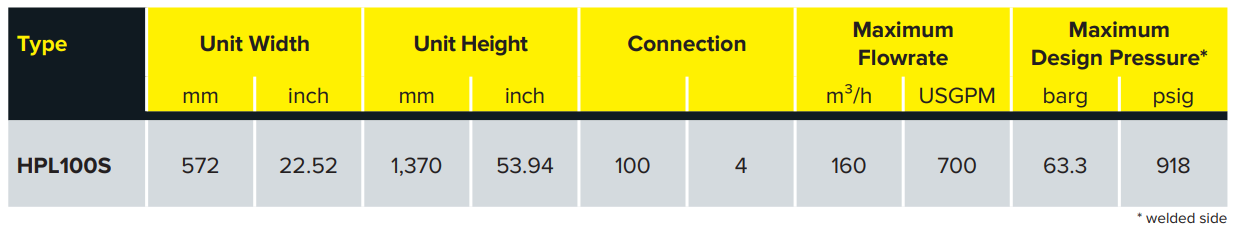

HPL Series
Performance Limits
- Design pressure up to 64 bar(g)
Advantages
- Designed for demanding applications
- Compact & cost-efficient solution
- Low invest
NT Series
Performance Limits
- Design pressure up to 29 bar(g)
Advantages
- Flexible solution for all applications
- Wide range of widths and lengths
- Extensive range of plate & gasket materials

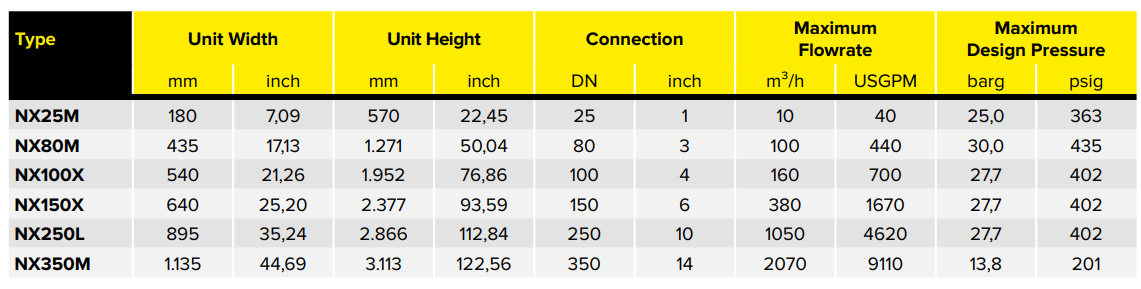

NX Series
Performance Limits
- Design pressure up to 31 bar(g)
Advantages
- Perfect fit for narrow temperature profiles
- Increased pressure resistance
- Higher heat transfer rates
LWC Series
Performance Limits
- Design pressure up to 33 bar(g)
Advantages
- Laser welded cassettes
- Hermetically sealed flow gap for hazardous media
- Assures high process reliability

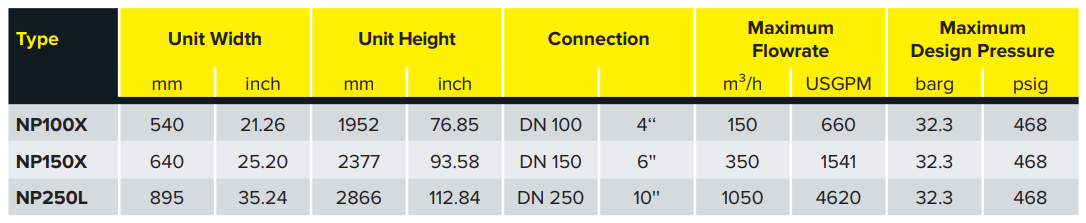

NP Series
Performance Limits
- Design pressure up to 33 bar(g)
Advantages
- Highest performance plate
- Perfect fit for extremely low temperature differences
- Highest pressure resistance
NL Series
Performance Limits
- Design pressure up to 27 bar(g)
Advantages
- Large herringbone plate gap for gentle media treatment
- For shear-sensitive and highly viscous media
NW Series
Performance Limits
- Design pressure up to 11 bar(g)
Advantages
- Widest herringbone plate gap
- For media containing small and round particles
NF Series
Performance Limits
- Design pressure up to 13 bar
Advantages
- Real Free Flow gap
- Constant gap width
- For media containing particles and fibers
ND Series
Performance Limits
- Design pressure up to 19 bar(g)
Advantages
- Double-wall plate for highest process safety
- No intermixing of media
NH Series
Performance Limits
- Design pressure up to 29 bar(g)
Advantages
- High pressure resistance at low pressure drop
- Available in special materials

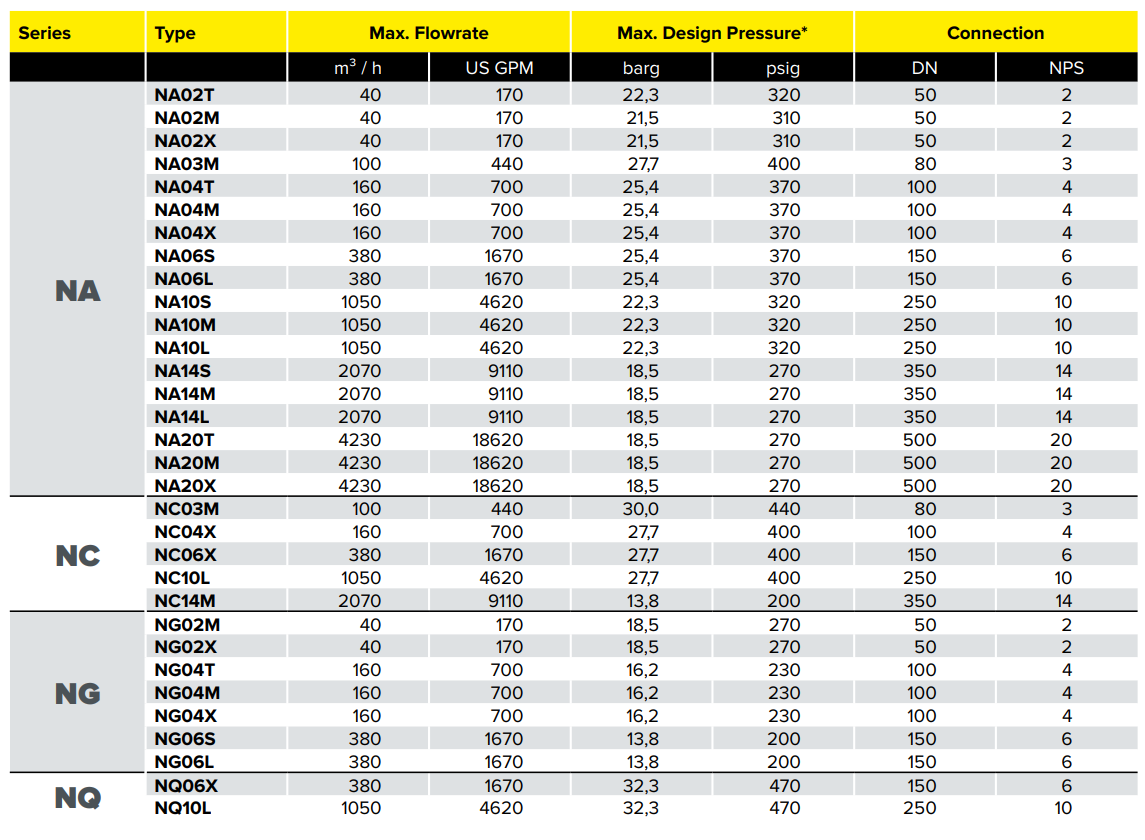

NC/NA/NG/NQ
Performance Limits
- Design pressure up to 33 bar(g)
Advantages
- AHRI certified plate series
- For HVAC applications
Kelvion gasketed plate heat exchangers combine passion, scientific curiosity and technological expertise. The facts: High efficiency at low operating costs, versatile application possibilities with lower investment costs and maximum flexibility. Kelvion efforts to continuously develop the gasketed plate heat exchanger-series further are aimed at meeting your thermodynamic and hydraulic performance needs and to ensure maximum economic efficiency. To take a closer look at Kelvion's range of gasketed plate heat exchangers, visit StudioPHE.
For more information, to request a quote or arrange a site visit please contact us.
