We can provide the complete range of Kelvion plate heat exchangers, including all brazed plate heat exchangers, along with all spare parts and gaskets.
GBH Series
Performance Limits
- Working temperature: -196°C to +200°C / -321°F to +392°F
- Working pressure: up to 45 bar / 653 psi
Advantages
- Highest Flexibility
- Compact Design
- Wide Range of Applications
- Robust Construction

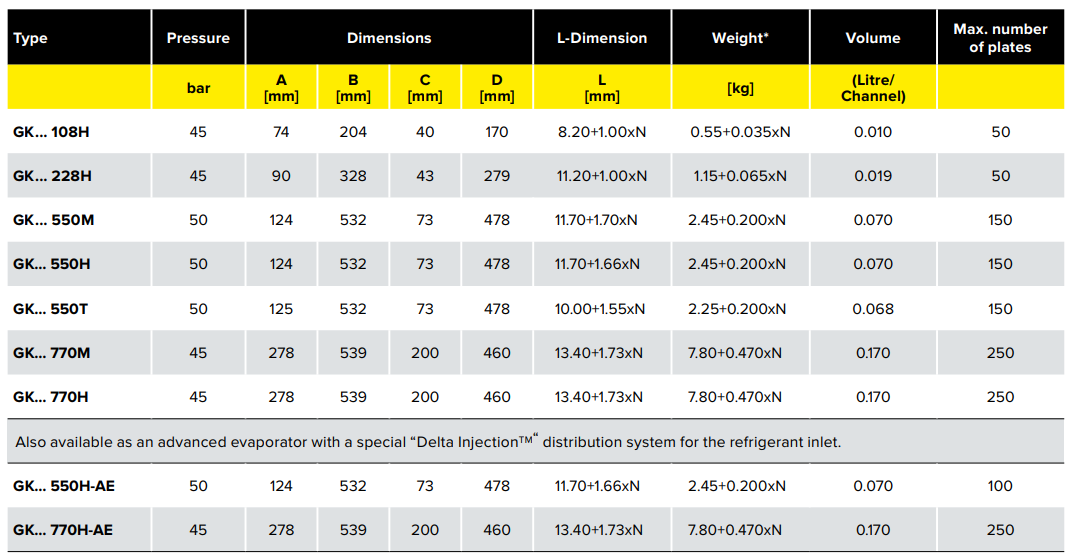

GK Series
Performance Limits
- Working temperature: -196°C to +200°C/ -321°F to + 392°F
- Working pressure: up to 50 bar / 725 psi
Advantages
- Increased Efficiency Performance
GWH Series
Performance Limits
- Working temperature: -196°C to +200°C / -321°F to +392°F
- Working pressure: up to 55 bar / 798psi
Advantages
- Solid Construction
- High Permanent Pressure Resistance
- Compact, Space-Saving Design
- Low Weight
- Low Investment Costs

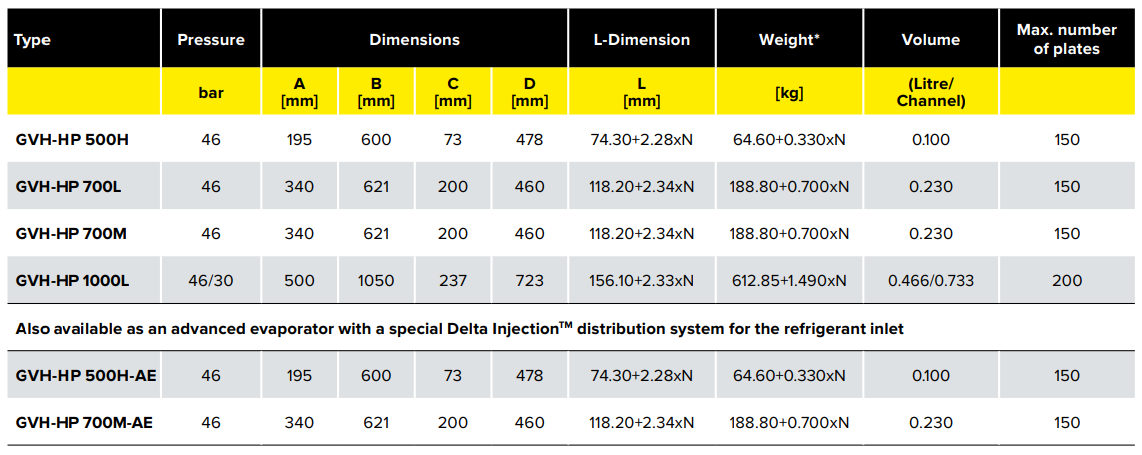

GVH-HP Series
Performance Limits
- Working temperature: -40°C to +150°C / -40°F to +302°F
- Working pressure: up to 46 bar / 667 psi
Advantages
- Free Of Non-Ferrous Metals
- High Thermal Efficiency
- High Operating Pressures
GVH Series
Performance Limits
- Working temperature: -196°C to +200°C / -321°F to +392°F
- Working pressure: up to 35 bar / 508 psi
Advantages
- Compact Design
- Low Investment Costs
- Free Of Non-Ferrous Metals
- High Corrosion Resistance

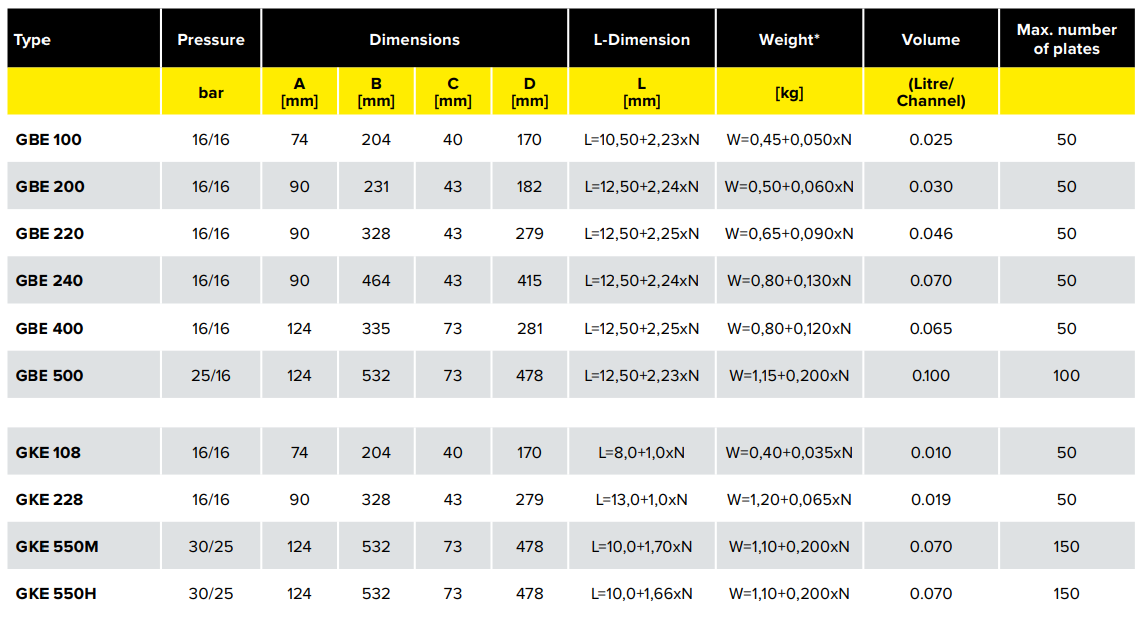

GBE-GKE Series
Performance Limits
- Working temperature: -196°C to +200°C / -321°F to +392°F
- Working pressure: up to 30 bar / 435 psi
Advantages
- Modular Design
- High Efficiency
- Low Investment Costs
- Conbraze®-Design Available

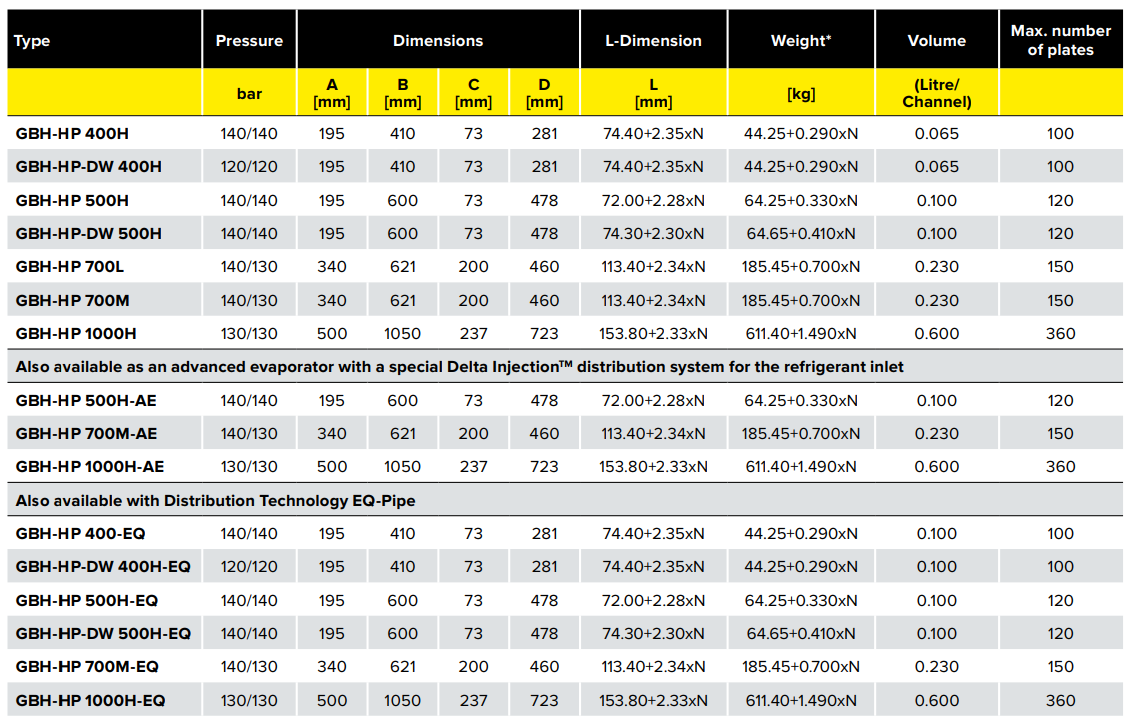

GBH-HP Series
Performance Limits
- Working temperature: -40°C to +150°C
- Working pressure: up to 140 bar
Advantages
- Long Lifetime
- Solid Frame Construction
- Co2 In A Transcritical Area
- High Permanent Pressure Resistance

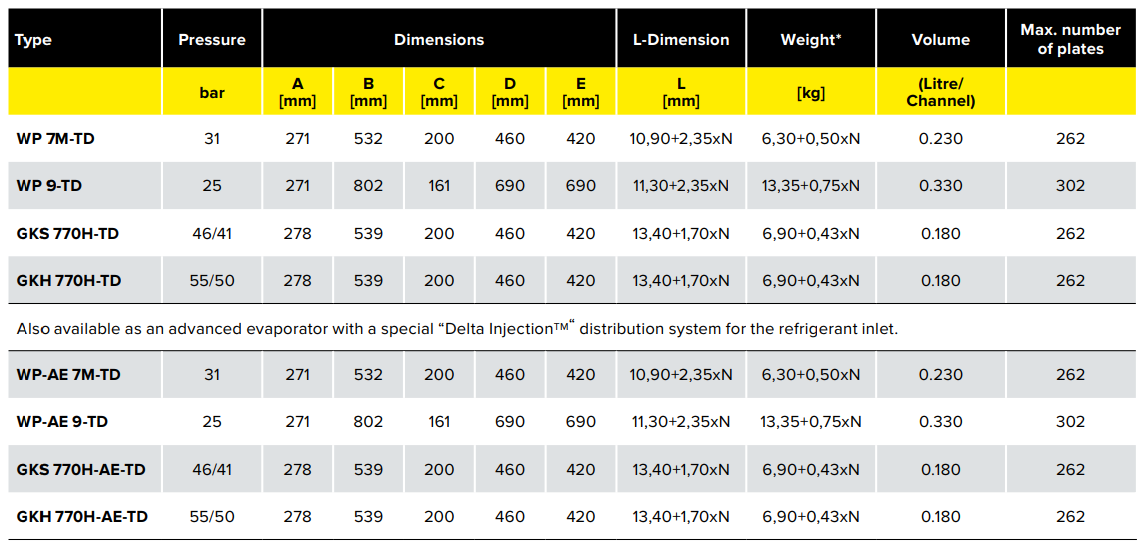

TD Series
Performance Limits
- Working temperature: -196°C to +200°C / -321°F to +392°F
- Working pressure: up to 55 bar
Advantages
- Highest Degree Of Flexibility
- Robust Design
- Wide Range Of Applications

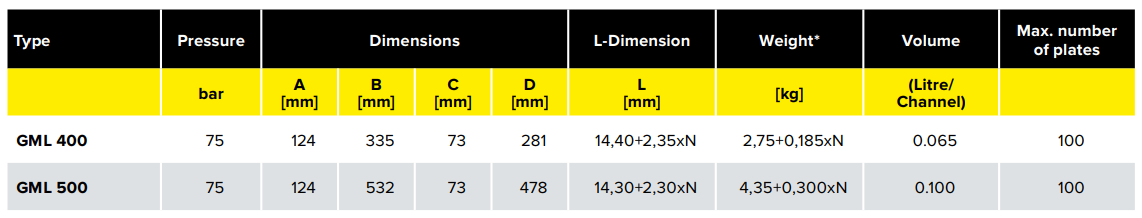

GML Series
Performance Limits
- Working temperature: -196°C to +200°C / -321°F to +392°F
- Working pressure: up to 75 bar / 1088psi
Advantages
- Compact Design
- Environment Friendly
- Safe In High Pressure Applications
- Powerful Plate Design

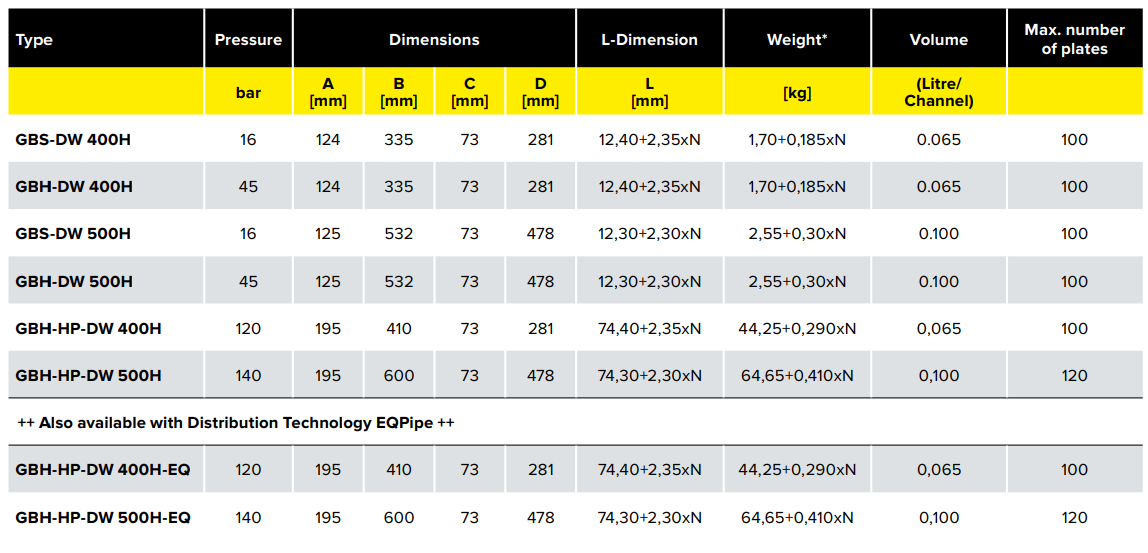

GB-DW Series
Performance Limits
- Working temperature: 0°C to +200°C / 32°F to +392°F
- Working pressure: up to 140 bar / 2031 psi
Advantages
- Double-Walled Safety Construction
- Reliable Media Seperation
- Space-Saving

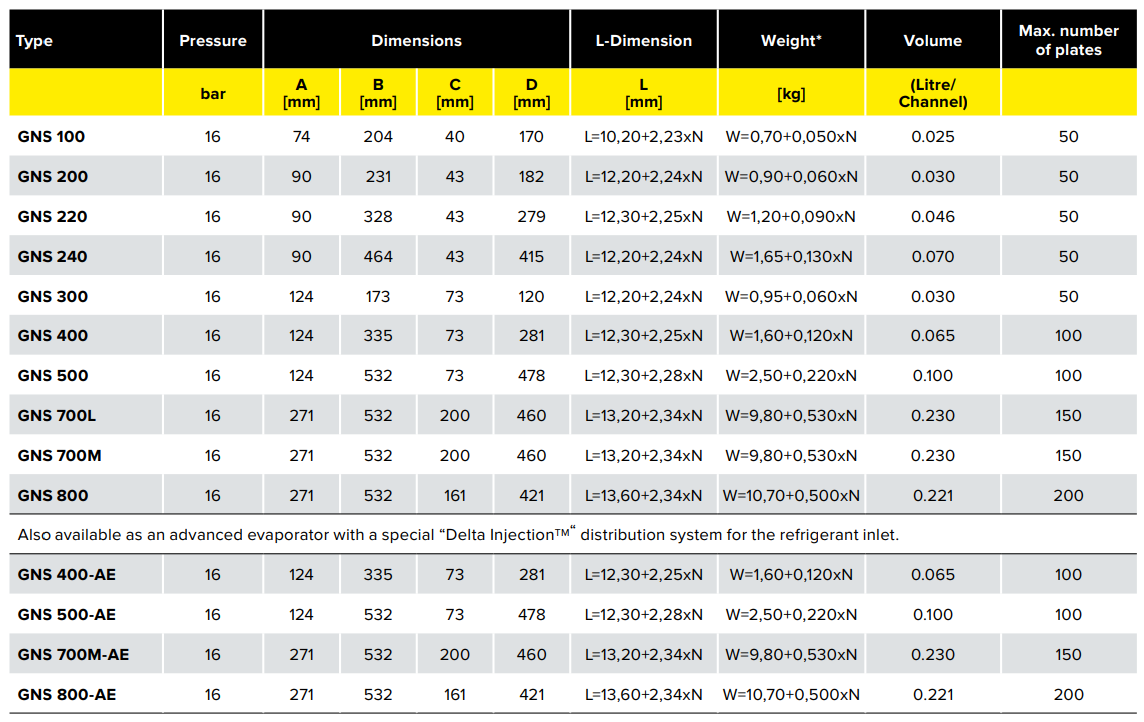

GNS Series
Performance Limits
- Working temperature: -196°C to +200°C / -321°F to +392°F
- Working pressure: up to 16 bar / 232 ps
Advantages
- High Corrosion Resistance
- Compact Design
- Low Investments Costs
- Wide Range Of Applications

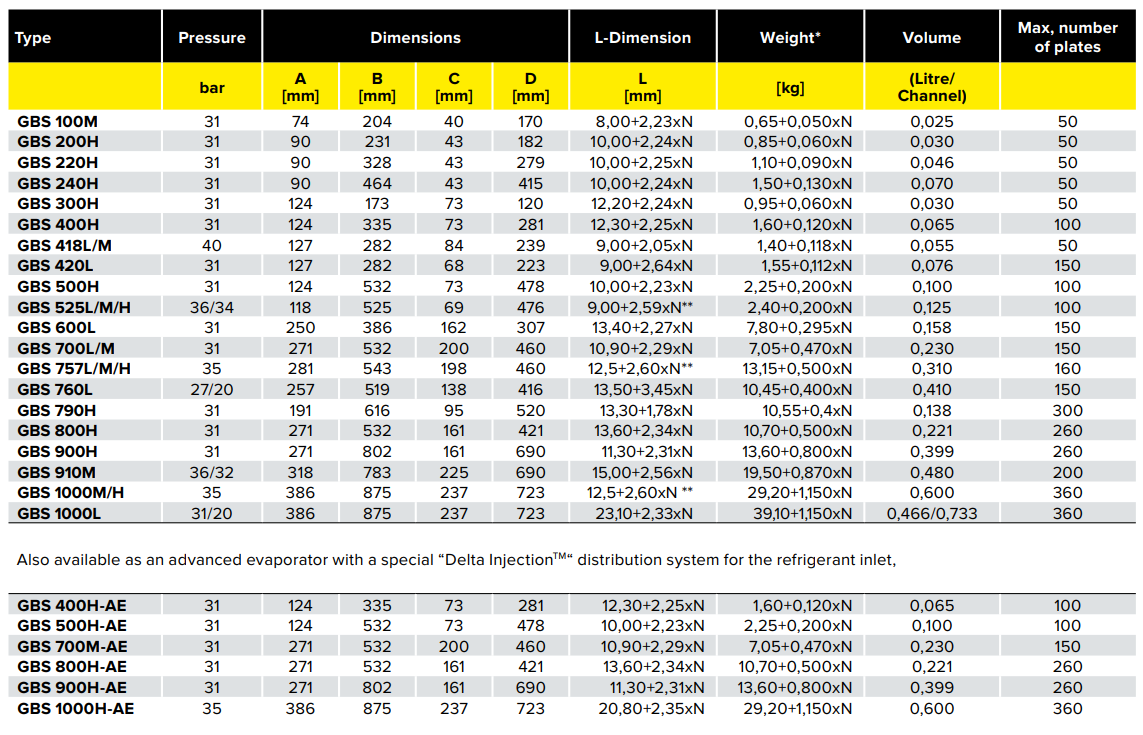

GBS Series
Performance Limits
- Working temperature: -196°C to +200°C / -321°F to +392°F
- Working pressure: up to 40 bar / 580psi
Advantages
- Highest Flexibility
- Compact Design
- Wide Rang Of Applications
- Solid Construction
Kelvion brazed plate heat exchangers offer customised solutions for a wide variety of applications. Thanks to the automated production and compact design of these brazed plate heat exchanger series, each individual heat exchanger can be put together for you within a short time. Kelvion's latest technology and decades of experience with successful applications, guarantee the highest quality, cost efficiency and reliability. To take a closer look at Kelvion's range of brazed plate heat exchangers, visit StudioPHE.
For more information, to request a quote or arrange a site visit please contact us.
